VI 1000

Multi-axis digital display with a color touchscreen LCD for absolute and incremental systems.

VI 1000 – Multi-channel digital display with touchscreen

The VI 1000 is a modern multi-channel digital display with a color touchscreen, designed for use with absolute and incremental measuring systems. It stands out for its compact design, intuitive operation, and versatility in a wide range of machine environments.

Highlights and Benefits

• Fully touchscreen-based for quick and easy operation
• Modern, compact design – ideal for industrial use
• Intuitive graphical user interface designed to provide optimal support for the operator
• Universal software compatible with various machine types
• 10.1-inch color touchscreen (TFT) capable of displaying up to 4 axes simultaneously
• Quick access to numerous built-in features
• Graphical representation of processing steps and functions

Technical features

• Support for absolute (SSI – BiSS protocol) and incremental encoder signals
• Display of encoded reference marks
• High resolution up to 0.01 µm
• Interface for absolute signals: RS-422 (Clock+, Clock-, Data+, Data-)
• CAN interface and RS-232 serial output
• Optionally available as a flush-mount version (panel mounting)
• Can be expanded by connecting to:
  • Digital modules (up to 8 relay outputs)
  • analog modules (e.g., constant cutting speed)

Type		Data sheet
VI 1000	Touchscreen color LCD display	" target="_blank" rel="noopener">

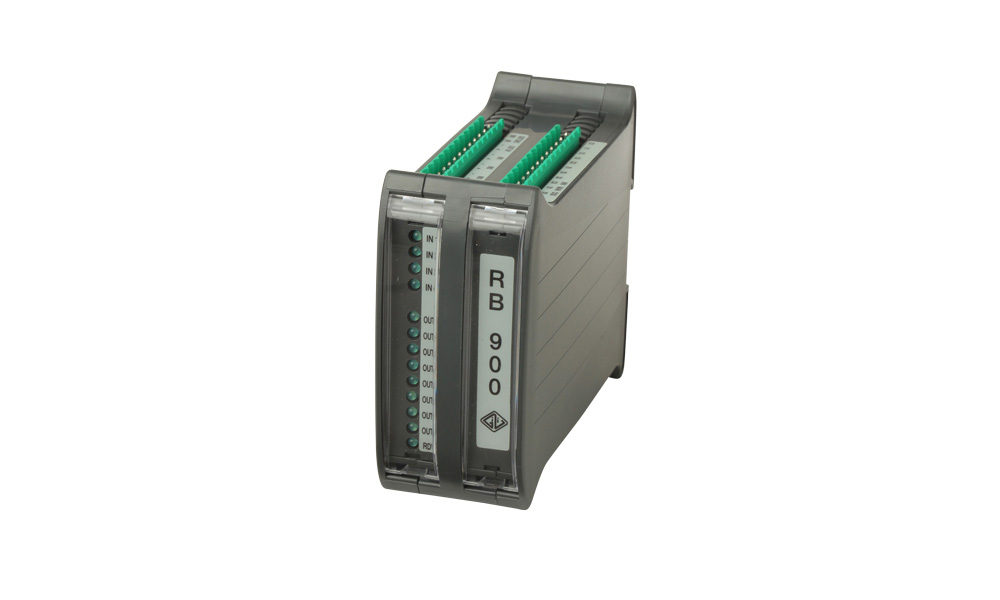

RB 900 I/O	Digital Remote Board - Up to 8 relay outputs	" target="_blank" rel="noopener">

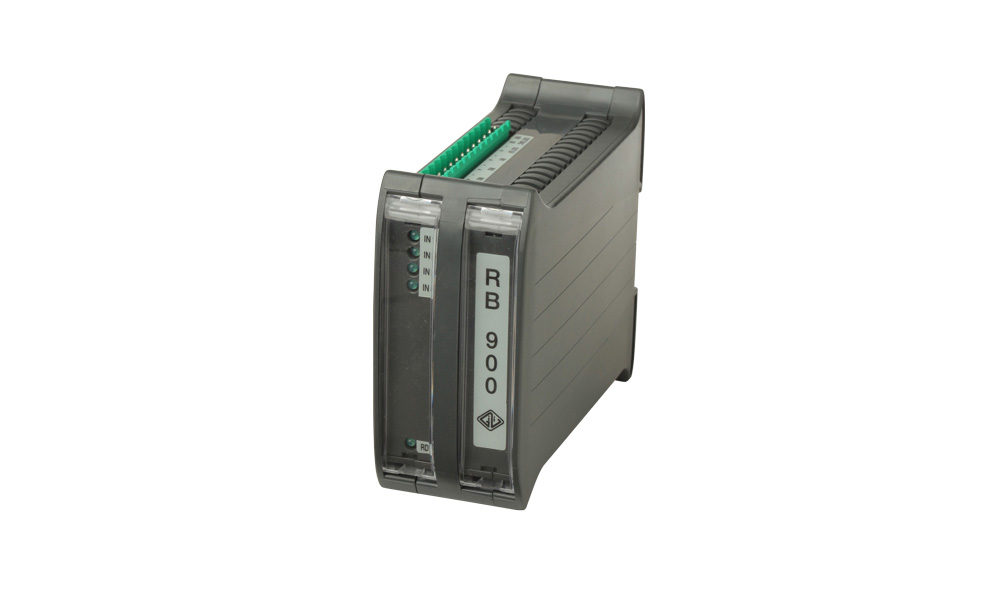

RB 900 CSS	Analog remote control board - constant surface speed	" target="_blank" rel="noopener">
